FRL 1000

Filters, regulators, lubricators, and piggybacks can be combined together to form combinations. They are typically strung together in the F+R+L arrangement (three-piece combo) and F/R+L (two-piece combo) arrangement, although other configurations are also used depending on application needs. ARO-Flo combination FRLs are easily assembled using modular spacer kits. Panel nuts not included with units. Must be ordered separately.

FRL 1000 Model Numbers

C28111-800, C28122-601, C38111-600, C38111-620, C38111-800, C38111-820, C38121-600, C38121-601, C38121-620, C38121-621, C38121-800, C38121-801, C38121-820, C38121-821.

Brochure

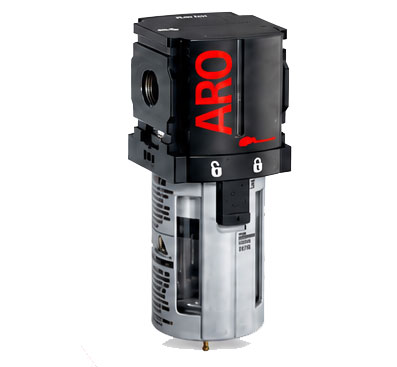

1000 SERIES FILTERS

1/8" AND 1/4" PORTS

ARO-Flo compressed air filters are designed to remove airborne solid and liquid contaminants. Filters can be ordered with different elements, including coalescing models which are capable of removing oil aerosols and particles down to 0.3 micron. Standard filters are sold with 5-micron elements; 40-micron elements can be purchased and installed separately.

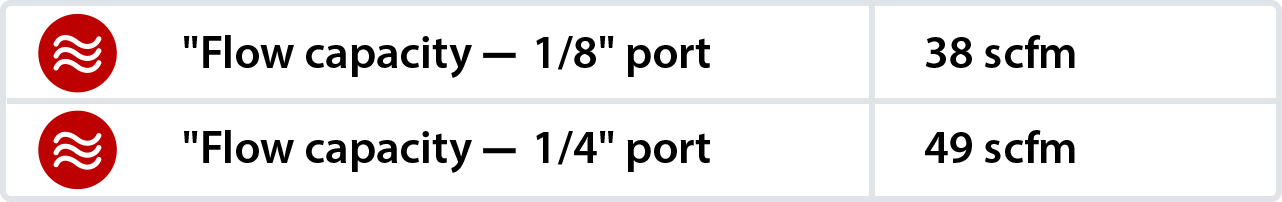

*Inlet pressure 90 psi (6.2 bar) with 10 psi drop (0.7 bar)

POLICARBONATE BOWLMETAL BOWL
Max inlet pressure (psl)150250
Temperature range (℉)23 - 12523 - 175

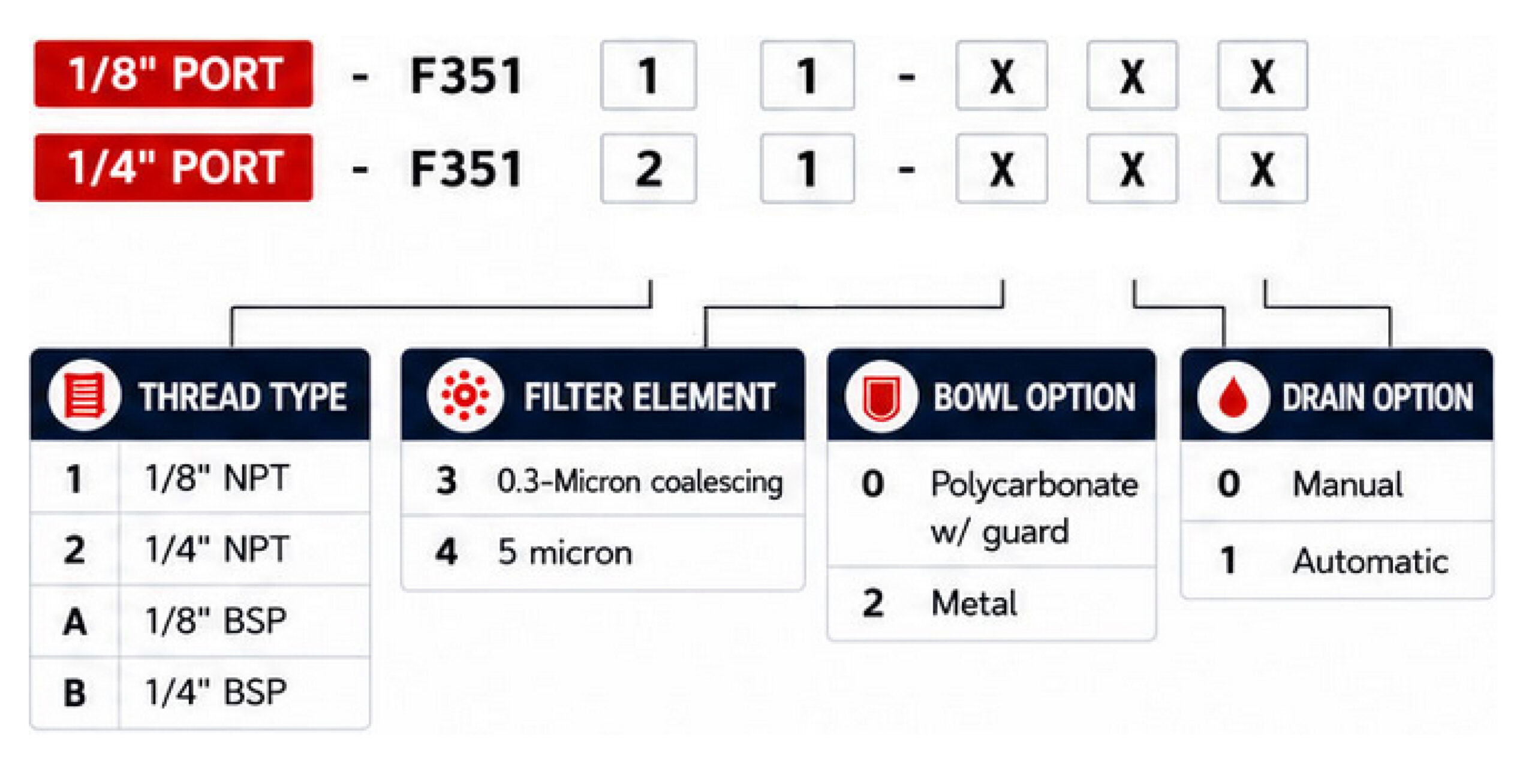

HOW TO ORDER

To configure the desired part number, use the chart below to select the port size, thread type, and configuration options.

POPULAR CONFIGURATION

PORT NUMBERCONFIGURATION (THREAD SIZE, BOWL TYPE, DRAIN OPTION)
F351111-3001/8" NPT, Coalescing, Polycarbonate Bowl w/ Guard, Manual
F351111-3011/8" NPT, Coalescing, Polycarbonate Bowl w/ Guard, Automatic
F351111-3201/8" NPT, Coalescing, Metal Bowl, Manual
F351111-3211/8" NPT, Coalescing, Metal Bowl, Automatic
F351111-4001/8" NPT, Standard 5 Micron, Polycarbonate Bowl w/ Guard, Manual
F351111-4011/8" NPT, Standard 5 Micron, Polycarbonate Bowl w/ Guard, Automatic
F351111-4201/8" NPT, Standard 5 Micron, Metal Bowl, Manual
F351111-4211/8" NPT, Standard 5 Micron, Metal Bowl, Automatic
F351121-3001/4" NPT, Coalescing, Polycarbonate Bowl w/ Guard, Manual
F351121-3011/4" NPT, Coalescing, Polycarbonate Bowl w/ Guard, Automatic
F351121-3201/4" NPT, Coalescing, Metal Bowl, Manual
F351121-3211/4" NPT, Coalescing, Metal Bowl, Automatic
F351121-4001/4" NPT, Standard 5 Micron, Polycarbonate Bowl w/ Guard, Manual
F351121-4011/4" NPT, Standard 5 Micron, Polycarbonate Bowl w/ Guard, Automatic
F351121-4201/4" NPT, Standard 5 Micron, Metal Bowl, Manual
F351121-4211/4" NPT, Standard 5 Micron, Metal Bowl, Automatic
Brochure

Regulators 1000

Air line regulators provide controlled, consistent air pressure as required for specific pneumatic equipment connected to the air system. All ARO-Flo regulators are offered with a standard adjustment range of 0 – 140 psig (0 – 9.6 barg). Alternative spring ranges are offered for easy conversion to suit different requirements. Non-relieving regulators are offered for applications where the venting of downstream overpressure is undesirable

Regulators 1000 Model Numbers

R37111-100, R37111-120, R37111-200, R37111-220, R37111-400, R37111-420, R37111-600, R37111-620, R37121-100, R37121-120, R37121-200, R37121-220, R37121-400, R37121-420, R37121-600, R37121-620.

Brochure

Lubricators 1000

ARO-Flo mist-type lubricators help ensure that pneumatic devices receive the required lubrication to maintain peak performance, reduce wear, and prolong service life. They are designed to provide the correct amount of oil required for most general applications in a pneumatic system, delivering a constant ratio of oil to air flow. Precise oil feed adjustment sets the proper oil drip rate. Lubricators should be installed close to the downstream application to ensure effective distribution of oil.

Lubricators 1000 Model Numbers

L36111-100, L36111-120, L36121-100, L36121-120.

Brochure


Piggyback Filter Regulator

Filter-regulators, or “piggybacks,” combine the functions of both a filter and regulator. Piggybacks are compact and most effective when space is a constraint. Piggybacks can be ordered with different filter elements and can be modified with different springs, depending on the filtration and air regulating requirements.

Piggyback Filter Regulator 1000 Model Numbers

P39114-100, P39114-104, P39114-120, P39114-124, P39114-200, P39114-204, P39114-220, P39114-224, P39114-400, P39114-404, P39114-420, P39114-424, P39114-600, P39114-604, P39114-620, P39114-624, P39124-100, P39124-104, P39124-120, P39124-124, P39124-200, P39124-204, P39124-220, P39124-224, P39124-400, P39124-404, P39124-420, P39124-424, P39124-600, P39124-604, P39124-620, P39124-624.
